Product model: 2210
Product Overview

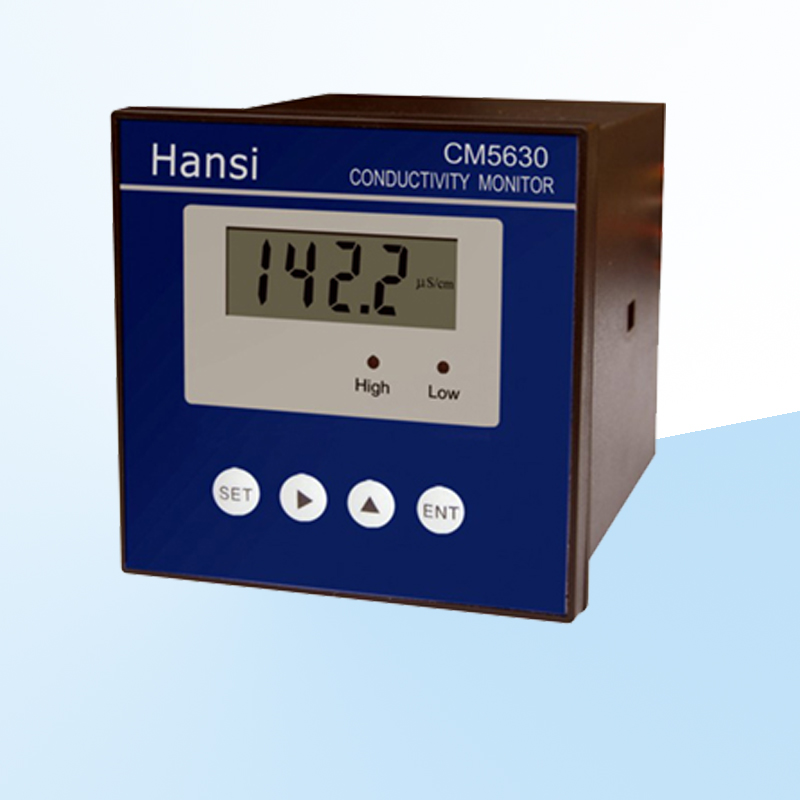

The online conductivity meter has the characteristics of full Chinese display, Chinese menu operation, full intelligence, multifunctionality, high measurement performance, and strong environmental adaptability. It is widely used in industries such as power, chemical, environmental protection, pharmaceuticals, metallurgy, biochemistry, food, and water supply. Electrodes with electrode constants of 0.01, 0.1, 1.0, or 10 can be selected based on the range of conductivity of the tested water sample, and installed in a flow through, immersion, or flange style.
Technical Indicators
| Display method: | Chinese LCD display, Chinese menu style operation; |
| Measurement range: | electrode constant x (1-3000) μ S/cm, 0-80 ℃; |
| Electrode constant: | set by software between 0.001 and 15.0cm-1; |
| Temperature compensation range: | automatic 0-80 ℃, manual 0-80 ℃, converted to 25 ℃; |
| Accuracy: | ± 0.5% FS, ± 0.3 ℃; |
| Current isolation output: | software settings for 0-10 mA (load<1.5 k Ω) or 4-20 mA (load<750 Ω); |
| Warning relay: | AC220V, 3A, warning signal isolation output; |
| Backlight switchable communication interface: | isolated RS485; |
| Power supply: | AC220V ± 22V, 50Hz ± 1Hz; |
| Protection level: | IP65; |
| Working conditions: | ambient temperature 0-60 ℃, relative humidity ≤ 90%; |
| Data storage capacity: | 1 month (1 hour/5 minutes); |
| Power off storage: | >10 years; |
| Weight: | 0.8kg ; |
| Dimensions: | 146 (length) x 144 (width) x 180 (depth) mm; |
| Opening size: | 136 x 136 mm |
| Installation method: | wall mounted/rack mounted/pipeline mounted; |
| Standard configuration: | one secondary meter, one set of measuring cells, and one electrode; |
Main Features
· Chinese LCD display, Chinese menu style operation, belonging to the high-end instrument panel of microcomputer models;
· Microcomputerization: Using high-performance CPU chips, high-precision AD conversion technology, and SMT chip mounting technology, it completes multi parameter measurement, temperature compensation, automatic range conversion, and instrument self inspection, with high accuracy and good repeatability;
· High reliability: single board structure, touch buttons, no switch knob potentiometer;
· Automatic conversion of measurement frequency: avoids electrode polarization and improves measurement accuracy;
· Phase sensitive detection design: eliminating the influence of wires on measurement;
· 25 ℃ conversion: temperature compensation automatic measurement/manual input;
· Waterproof and dustproof design: protection level IP65, suitable for outdoor use;
· Electromagnetic compatibility (EMC/RFI) design: designed and manufactured according to the European standard EN50081/50082;
· Network function: isolated current output and RS485 communication interface; The upper and lower limits of the output corresponding to the conductivity value of the current can be arbitrarily set;
· Numerous practical functions: continuously recording a month’s curve, recording 200 pieces of information, convenient for testing the manual current source of the detection device, built-in real-time clock, etc;
· Password management: Both parameter settings and maintenance are password protected.
